Other:		 Pneumatically Actuated With Bellows Attached Reed Sensor
Tube End

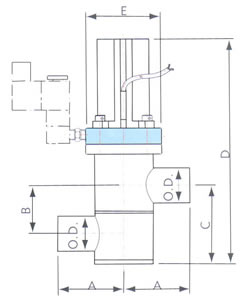

 Figure 31

Pneumatically Actuated
         Available Area: U.S.A
         Without bellows, air to open, spring to close.

Model No. O.D. A B C D E Figure Parts No.
IV-TE16-P 0.75 2.00 1.12 1.87 5.90 2.25 28 302109100010
IV-TE25-P 1.00 1.88 1.37 2.25 6.14 2.25 28 302111100010
IV-TE40-P 1.50 2.25 1.88 3.12 8.40 3.00 28 302113100010
IV-TE50-P 2.00 3.25 2.62 4.12 11.04 3.50 28 302114100010
Port Connections: Tube End
Manually Operated Copper Seal Bonnet With Bellows
Tube End

 Figure 37
Manually Operated With Bellows
         Available Area: U.S.A
Model No. O.D. A B C D Figure Parts No.
IV-TE16-P 0.75 3.70 3.91 4.43 2.25 34 304109000016
IV-TE25-P 1.00 3.90 3.82 4.34 2.25 34 304111000016
IV-TE40-P 1.50 4.82 4.87 5.74 3.00 34 304113000016
IV-TE50-P 2.00 6.70 5.30 6.55 3.00 34 30411400016
Port Connections: Tube End
Pneumatically Actuated With Bellows Attached Reed Sensor
Tube End

 Figure 43
Pneumatically Actuated With Bellows
Model No. O.D. A B C Figure Parts No.
IV-TE16-P 0.75 3.70 4.15 2.25 40 3041091000016
IV-TE25-P 1.00 3.90 4.09 2.25 40 3041111000016
IV-TE40-P 1.50 4.82 5.61 3.00 40 3041131000016
IV-TE50-P 2.00 6.70 7.15 3.50 40 304114100016
IV-TE63-P 2.50 7.75 7.96 4.00 40 304115200016
Port Connections: Tube End
