VERTICAL DRY VACUUM PUMP TYPE TRV/TAV The new dry vacuum pump type TRV is completely oil free type developed with a new concept, which is different from conventional dry vacuum pumps. The cooling effect of high efficiency jacketed pump eliminates inter cooler and drain tanks. The top down transport of gas ensures rapid and complete draining. The pump insures easy solvent recovery in the discharge of the vacuum pump. For lager pumping system or high vacuum application, this pump can be used with mechanical booster. It is easy compact system using the vertical dry vacuum pump. FEATURES:
|
||||||||||||||||||

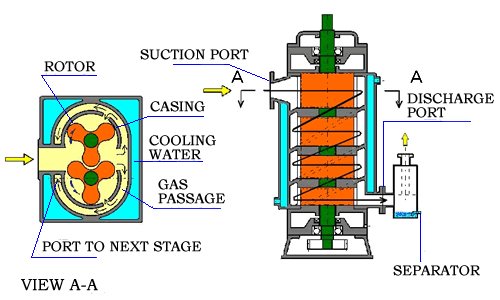

| PRINCIPLE The pair of rotors is provided in the vertical casing with back-flow cooling system. The suction gas into the inlet of pump is compressed by rotation of rotors and transferred to the peripheral gas passage in just the out side of the housing. Condensable gas would be condensed according to its pressure. Some cases suction gas has carry over liquid. In both cases, liquid would be flown down with handling gas and discharged to the atmosphere. The vertical compact dry vacuum pump insures easy draining of liquid without any controls. |
||||||||||||||||||||

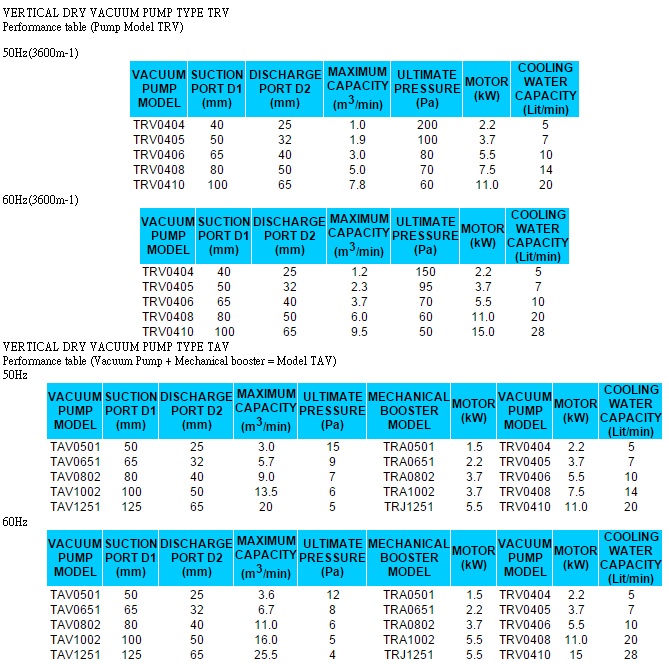

PERFORMANCE
|
||||||||||||||||||||
 BACK |
||||||||||||||||||||

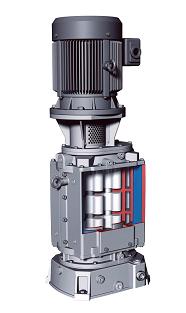

Dry vacuum pump Type "TRV"
Rapid and complete draining
