High Speed 6-Inch Vacuum Blowers

STOKES
 VACUUM
INC.

Increased Pumping Efficiency, Productivity

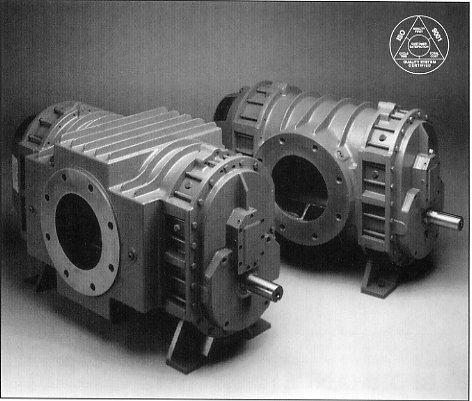

High speed 6-inch vacuum blowers from Stokes substantially boost pumping capacity decreasing cycle times significantly for high out-gassing applications. Pumping capacity for the high speed line ranges from 2600 to 3900 cfm.

New features for this line include four mechanical seals and water-cooled bearing housings.Mechanical seals provide separation of process gases from lubrication oils, while water-cooled bearing housings protect them from over heating. The result - increased bearing and seal life.

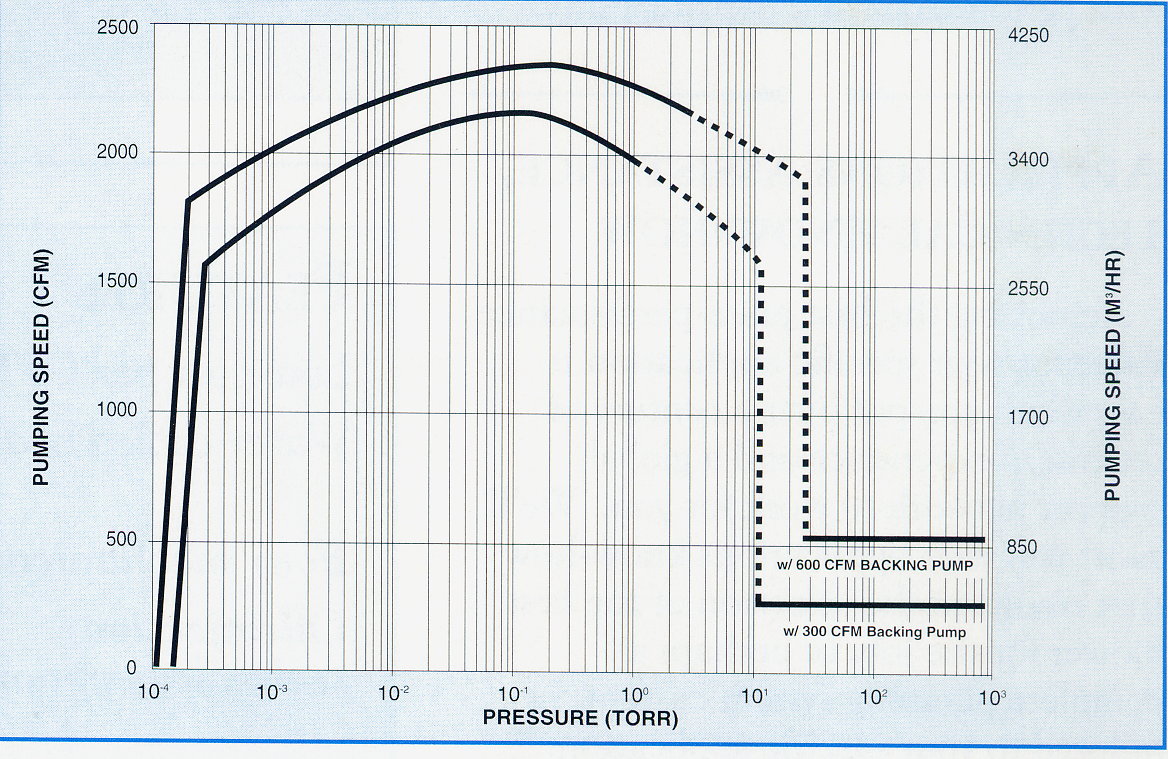

You really owe it to yourself to check out this line of high speed vacuum blowers. Just one glance at the features, benefits and performance curves will show you why Stokes is synonymous with performance and dependability.


Spedcifications
Units
Belt Driven Models
Air Flow Direction
Vertical 615-HSV 622-HSV
Horizontal 615-HSH 622-HSH
Displacement@ 3600RPM
CFM 2600 3900
/HR 4420 6630
Motor Speed
RPM 2600 3600
Inlet & Outlet Flanges ASA
Inch 8 8
Height
Inch 21.4 21.4
mm 543 543
Footprint
Inch 33.1X16.0 40.1X17.3
Dimensions
mm 841X406 1018X438
Oil Capacity
Pints 4.1 4.1
Liter 2.0 2.0
Cooling Water
GPM 2-3 2-3
LPM 7.6-11.4 7.6-11.4
Maximum Pressure Differential
Torr 380 250
Maximum
°F 275 250
Temperature Rise
°C 135 121
Maximum Discharge Temperature
°F 375 350
°C 191 177
Weight(net)
lbs. 515 740
kg. 258 336
