Without by-pass valve

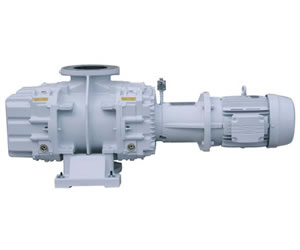

Aerzener blowers series HV have been designed for conveying air and neutral gases and are especially used in industrial high vacuum technology. With a total of 19 sizes, the blowers cover a theoetical nominal intake volume flow from 180 m3/h . to 97,000 m3/h and pressure ranges 10-3 mbar abs up to approx. 200 mbar abs.

Examples for the various fields of applications:

* Coating technology
* Chemical process technology
* Metallurgy/ construction of melting furnaces
* Packing industry
* Central vacuum systems
* Helium leakage detection units
* Manufacture of lamps
* Drying technology
* Machine construction
* Electronics
* Automotive industry


download pdf >>




Technical data:

Size Theoretical suction volume Sth with operation on
50 Hz / 60 Hz		 Max. admissible differential pressure for motor power Oil filling quantities for Noise level Motor power on 50 Hz 60 Hz Motor
constructive form		 Speed on
50 Hz / 60 Hz		 Voltage on
50 Hz / 60 Hz
m3/h mbar GMa/b GLa/b Kw [1/min] [V] [V]
GMa GLa
10.0 HV
180
250
130
0,9
0,7
0,75 / 0,85
80
3000
3600
230
400
400 - 480
GMa GLa
10.1 HV
250
300
140
0,9
0,7
1,1 / 1,32
80
3000
3600
230
400
400 - 480
GMa GLa
10.2 HV
365
450
130
0,9
0,7
1,5 / 1,8
90 S
3000
3600
230
400
400 - 480
GMa GLa
11.3 HV
500
600
140
1,1
0,8
2,2 / 2,6
90 L
3000
3600
230
400
400 - 480
GMa
GLa
11.4 HV
750
900
130
1,1
0,8
3 / 3,6
100 L
3000
3600
400
690
400 - 480
GMa
GLa
12.5 HV
1000
1200
130
1,5
1,1
4 / 4,8
100 L
3000
3600
400
690
400 - 480
GMa
GLa
12.6 HV
1430
1700
130
1,5
1,1
5,5 / 6,3
112 M
3000
3600
400
690
400 - 480
GMa
GLa
13.f7 HV
2000
2400
110
2,5
2,1
7,5 / 8,8
132 S
3000
3600
400
690
400 - 480
GMa
GLa
13.8 HV
2900
3450
100
2,5
2,1
11 / 12,5
160 M
3000
3600
400
690
400 - 480
GMa
GLa
14.9 HV
3900
4700
80
7
3,5
11 / 12,5
160 M
3000
3600
400
690
400 - 480
GMa
GLa
15.10 HV
5600
6700
80
12
5,4
15 / 17
160 M
3000
3600
400
690
400 - 480
GMa
GLa
15.11 HV
7500
9000
80
12
5,4
18,5 / 21
160 L
3000
3600
400
690
400 - 480
GMa
GLa
16.f13 HV
8150
9800
75
11
7,6
18,5 / 21
180 M
1500
1800
400
690
400 - 480
GMa
GLa
16.13 HV
9750
11700
75
11
7,6
22 / 25
180 L
1500
1800
400
690
400 - 480
GMa
GLa
17.15 HV
16000
18825
60
18,5
-
30 / 36
200 L
1500
1800 *
400
690
400 - 480

* = only with rotary pistons material EN-GJS-400-15 (GGG-40)







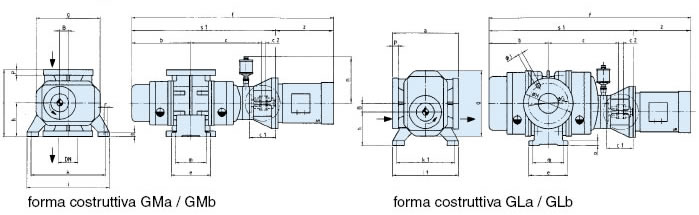

Dimensions:




Model
a
b
c
c1
e
f
g
h
i
i1
k
k1
m
n
s1
z
DN
G
 H
Peso CA kg
GM a
GL a
10.0 HV
264
224
262
106
152
780
258
132
332
264
300
232
120
250
544
236
50
125
165
95
GM a
GL a
10.1 HV
264
239
283
106
157
816
258
132
332
264
300
232
125
250
580
232
80
160
200
105
GM a
GL a
10.2 HV
264
287
324
116
239
933
958
258
132
332
264
300
232
207
250
679
254
279
80
160
200
125
GM a
GL a
11.3 HV
320
280
324
134
200
951
295
160
390
300
350
260
150
250
672
279
100
180
220
150
GM a
GL a
11.4 HV
320
330
374
146
290
1100
295
160
390
300
350
260
245
250
784
316
100
180
220
180
GM a
GL a
12.5 HV
360
325
380
186
260
1118
360
180
440
336
400
296
210
250
785
333
100
180
220
230
GM a
GL a
12.6 HV
360
381
436
206
340
1289
360
180
500
396
460
356
290
250
917
372
150
240
285
295
GM a
GL a
13.f7 HV
400
375
423
206
330
1276
436
200
570
440
510
380
270
250
907
372
150
240
285
345
GM a
GL a
13.8 HV
400
445
493
234
470
1560
436
200
570
440
510
380
410
250
1075
488
150
240
285
485
GM a
GL a
14.9 HV
500
470
510
263
350
1606
538
250
652
484
600
432
290
260
1118
488
200*
295
340
580
GM a
GL a
15.10 HV
630
468
545
281
360
1629
652
315
800
588
720
508
280
270
1151
486
200*
295
340
770
GM a
GL a
15.11 HV
630
533
610
281
490
1813
652
315
800
588
720
508
410
270
1281
532
250*
350
395
840
GM a
GL a
16.f13 HV
710
620
717
297
670
2036
810
355
910
640
830
560
525
290
1482
554
300*
400
445
1350
GM a
GL a
16.13 HV
710
685
717
297
800
2204
810
355
910
640
830
560
655
290
1612
592
300*
400
445
1400
GM a
GL a
17.15 HV
1000
782
825
297
855
2421
1005
500
930
920
810
810
725
290
1752
669
350*
460
505
2300
