| Compact Vacuum Packages |
|
|
Given the proven performance of our PVL400/PVL540 vacuum pumps and the Aerzener HV series of Roots-type pumps, we have designed pumping groups that conveniently combine the benefits of both in high performance compact packages.
The new GC packages provide the following significant benefits: - Integral pipe-work allowing easier installation - Max. ultimate vacuum 0.01 mbar abs. - max. capacity 1,700 m3/h . - Energy savings resulting from low motor rating - Compact footprints - Much reduced operating and maintenance costs The GC vacuum packages can be further enhanced with accessories such as electrical panels to EC standards, process control options, inlet filters.
|
without bypass valve
|
Compact package without bypass valve
GC 11.3-400 |
GC 11.4-540 |
GC 12.5-400 |
GC 12.6-540 |
|||
| Pump type | GMa11.3HV PVL400 |
GMa11.4HV PVL540 |
GMa12.5HV PVL400 |
GMa12.6HV PVL540 |
||
| Capacity ratio | 1,24
|
1,36
|
2,48
|
2,61
|
||
| Portata effettiva a 1mbar | m3/h |
50 hz 60 hz |
452 542 |
655 786 |
860 1030 |
1200 1440 |
| Effective capacity at 10 mbar | m3/h |
50 hz 60 hz |
445 534 |
652 782 |
835 1005 |
1070 1234 |
| Ultimate pressure | mbar Pa |
0,01
1 |
||||
| Cut-in pressure | mbar |
50 hz 60 hz |
783,6 900 |
452,5 499 |
92,1 103,3 |
81 89,3 |
| Motor power | KW |
50 hz 60 hz |
9,7 14 |
14 19 |
11,5 16,5 |
16,5 22,5 |
| Noise [ISO/DIS 2151] | dB(A) |
50 hz 60 hz |
79 80 |
79 80 |
79 80 |
79 81 |
| Inlet diameter | A A1 |
3”G Dn 100 |
3”G Dn 100 |
3”G Dn 100 |
3”G Dn 150 |
|
| Outlet diameter | 3”G
|
3”G
|
3”G
|
3”G
|
||

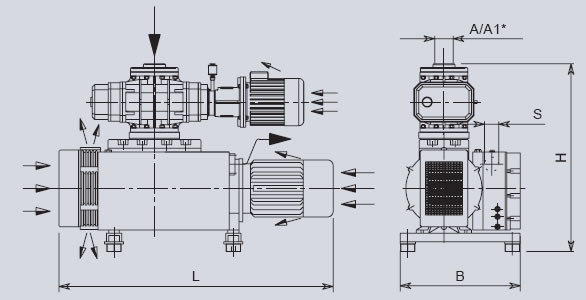

| Overall dimensions | mm |
L |
1270
|
1270
|
1270
|
1270
|
B |
632
|
632
|
632
|
632
|
||
H |
948
|
948
|
988
|
1020
|
||
| Weight | Kg |
50 hz 60 hz |
435 474 |
505 537 |
535 589 |
610 642 |
Compact package with bypass valve
真空
GC 12.5Bp-400 |
GC 12.6Bp-540 |
|||
| Pump type | GMa12.5HV-Bp PVL400 |
GMa12.6HV-Bp PVL540 |
||
| Capacity ratio | 2,4
|
2,61
|
||
| Effective capacity at 1 mbar | m3/h |
50 hz 60 hz |
840 1008 |
1200 1440 |
| Effective capactiy at 10 mbar | m3/h |
50 hz 60 hz |
860 1032 |
1240 1488 |
| Ultimate pressure | mbar Pa |
0,01
1 |
||
| Cut-in pressure | mbar |
1016 |
||
| Motor power | KW |
50 hz 60 hz |
10,5 15 |
15 20,5 |
| Noise [ISO/DIS 2151] | dB(A) |
50 hz 60 hz |
79 80 |
80 81 |
| Inlet diameter | A A1 |
3”G Dn 100 |
3”G Dn 150 |
|
| Outlet diameter | 3”G
|
3”G
|
||
| Overall dimensions | mm |
L |
1270
|
1424
|
B |
632
|
632
|
||
H |
1064
|
1124
|
||
| Weight | Kg |
50 hz 60 hz |
542 588 |
630 676 |
