MEDISYSTEM
|
|
|
Thanks to our experience developed in over forty years of vacuum pumps manufacturing, we have designed central vacuum systems series MEDISYSTEM. Manufactured in observance of EN 737-3 standards, these systems meet the requirements of all those medical structures, such as hospitals, clinics, nursing homes, analysis laboratories, etc. MEDISYSTEM groups are mainly formed by:
* vacuum central with three pumps able to guarantee the continuity of operation also in case of emergency.
* vacuum tank fitted with vacuum switches.
* control panel, with 'touch-screen' system to check and schedule the complete group.
* antibacterial filter group with support and bypass system according to EN 737-3 standards.
* base-plate for all the components.
MEDISYSTEM can be supplied as turnkey systems or as single component for the integration of already existing groups. |
|

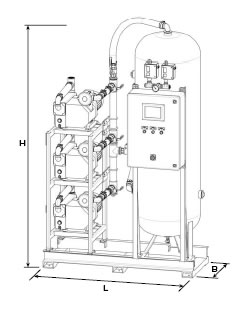

Vertical central vacuum systems
 |
| Type |
CTV 500-15/H |
CTV 500-65/H |
CTV 900-150/H |
CTV 900-300/H |
| Tank liters |
500 |
500 |
900 |
900 |
| Nominal capacity m3/h |
50 hz
60 hz |
3X15
3X20 |
3X65
3X78 |
3X146
3X175 |
3X300
3X350 |
| Ultimate pressure mbar 3 x 20 |
0,5 (20) |
0,5 (10) |
0,5 (10) |
0,5 (10) |
Motor power (kW) |
50 Hz |
~3 |
3 X 0,55 |
3 X 1,5 |
3 X 3 |
3 X 5,5 |
~1 |
3 X 0,75 |
3 X 2,2 |
- |
- |
60 Hz |
~3 |
3 X 0,75 |
3 X 2,2 |
3 X 4 |
3 X 7,5 |
~1 |
3 X 0,75 |
3 X 2,2 |
- |
- |
| Sound pressure level dB(A) |
50 Hz |
71 |
74 |
76 |
77 |
60 Hz |
72 |
75 |
77 |
78 |
| Dimensions mm |
L |
1425 |
1425 |
2413 |
2413 |
B |
912 |
912 |
1123 |
1123 |
H |
2322 |
2322 |
2433 |
2433 |
| Total weight kg |
50 hz |
~3 |
437 |
542 |
808 |
1090 |
~1 |
443 |
560 |
- |
- |
60 hz |
~3 |
440 |
557 |
832 |
1126 |
~1 |
443 |
530 |
- |
- |
|
Antibacterial filter groups
 |
| Filter type |
GFB 45
P 1 T |
GFB 120 P 3 T |
GFB 330 P 5 T |
GFB 510 P 6 T |
Capacity at 348 mbar ass
(-500 mmHg) |
m3/h |
45 |
120 |
330 |
510 |
| Inlet and outelet ports |
3/4" G |
1" 1/4 G |
1" 1/2 G |
2" G |
| Dimensions mm |
L |
560 |
700 |
850 |
950 |
B |
200 |
280 |
360 |
410 |
H |
1000 |
1000 |
1000 |
1000 |
| Reference central system |
CTV 500-15/H
|
CTV 500-65/H
|
CTV 900-150/H
|
CTV 900-300/H |
|
