 With by-pass valve
|
Aerzener blowers series HV have been designed for conveying air and neutral gases and are especially used in industrial high vacuum technology. With a total of 19 sizes, the blowers cover a theoetical nominal intake volume flow from 180 m3/h . to 97,000 m3/h and pressure ranges 10-3 mbar abs up to approx. 200 mbar abs.
Examples for the various fields of applications:
 Coating technology
Chemical process technology
Metallurgy/ construction of melting furnaces
Packing industry
Central vacuum systems
Helium leakage detection units
Manufacture of lamps
Drying technology
Machine construction
Electronics
Automotive industry |
 |
Technical data:
| Size |
Theoretical suction volume Sth with operation on
50 Hz / 60 Hz |
Max. admissible differential pressure for motor power |
Oil filling quantities for Noise level |
Motor power on 50 Hz 60 Hz |
Motor
constructive form |
Speed on
50 Hz / 60 Hz |
Voltage on
50 Hz / 60 Hz |
|
m3/h |
mbar |
GMa/b |
GLa/b |
Kw |
|
[1/min] |
[V] |
[V] |
| GMa GLa |
10.0 HV |
180
250 |
130 |
0,9 |
|
0,75 / 0,85 |
80 |
3000
3600 |
230
400 |
|
| GMa GLa |
10.1 HV |
250
300 |
140 |
0,9 |
|
1,1 / 1,32 |
80 |
3000
3600 |
230
400 |
|
| GMa GLa |
10.2 HV |
365
450 |
130 |
|
|
1,5 / 1,8 |
90 S |
3000
3600 |
230
400 |
|
| GMa GLa |
11.3 HV |
500
600 |
140 |
1,1 |
|
2,2 / 2,6 |
90 L |
3000
3600 |
230
400 |
|
GMa
GLa |
11.4 HV |
750
900 |
130 |
1,1 |
|
3 / 3,6 |
100 L |
3000
3600 |
400
690 |
|
GMa
GLa |
12.5 HV |
1000
1200 |
130 |
|
|
4 / 4,8 |
100 L |
3000
3600 |
400
690 |
400 - 480 |
GMa
GLa |
12.6 HV |
1430
1700 |
130 |
1,5 |
|
5,5 / 6,3 |
112 M |
3000
3600 |
400
690 |
400 - 480 |
GMa
GLa |
13.f7 HV |
2000
2400 |
110 |
2,5 |
|
7,5 / 8,8 |
132 S |
3000
3600 |
400
690 |
400 - 480 |
GMa
GLa |
13.8 HV |
2900
3450 |
100 |
|
|
11 / 12,5 |
160 M |
3000
3600 |
400
690 |
400 - 480 |
GMa
GLa |
14.9 HV |
3900
4700 |
80 |
7 |
|
11 / 12,5 |
160 M |
3000
3600 |
400
690 |
400 - 480 |
GMa
GLa |
15.10 HV |
5600
6700 |
80 |
12 |
|
15 / 17 |
160 M |
3000
3600 |
400
690 |
400 - 480 |
GMa
GLa |
15.11 HV |
7500
9000 |
80 |
|
|
18,5 / 21 |
160 L |
3000
3600 |
400
690 |
400 - 480 |
GMa
GLa |
16.f13 HV |
8150
9800 |
75 |
11 |
|
18,5 / 21 |
180 M |
1500
1800 |
400
690 |
400 - 480 |
GMa
GLa |
16.13 HV |
9750
11700 |
75 |
11 |
|
22 / 25 |
180 L |
1500
1800 |
400
690 |
400 - 480 |
GMa
GLa |
17.15 HV |
16000
18825 |
60 |
|
|
30 / 36 |
200 L |
1500
1800 * |
400
690 |
|
* = only with rotary pistons material EN-GJS-400-15 (GGG-40)

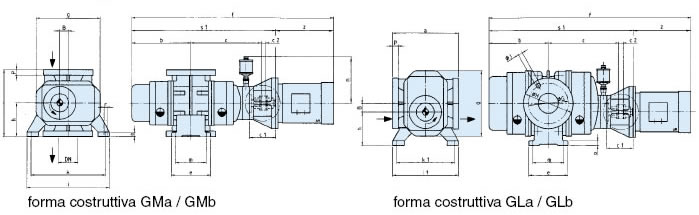

Dimensions:
| Model |
a |
b |
c |
c1 |
e |
f |
g |
h |
i |
i1 |
k |
k1 |
m |
n |
s1 |
z |
DN |
|
H |
Peso CA kg |
GM a
GL a |
10.0 HV |
264 |
224 |
262 |
106 |
152 |
780 |
258 |
132 |
332 |
264 |
300 |
232 |
120 |
250 |
544 |
236 |
50 |
125 |
165 |
95 |
GM a
GL a |
10.1 HV |
264 |
239 |
283 |
106 |
157 |
816 |
258 |
132 |
332 |
264 |
300 |
232 |
125 |
250 |
580 |
232 |
80 |
160 |
200 |
105 |
GM a
GL a |
10.2 HV |
264 |
287 |
324 |
116 |
239 |
933
958 |
258 |
132 |
332 |
264 |
300 |
232 |
207 |
250 |
679 |
254
279 |
80 |
160 |
200 |
125 |
GM a
GL a |
11.3 HV |
320 |
280 |
324 |
134 |
200 |
951 |
295 |
160 |
390 |
300 |
350 |
260 |
150 |
250 |
672 |
279 |
100 |
180 |
220 |
150 |
GM a
GL a |
11.4 HV |
320 |
330 |
374 |
146 |
290 |
1100 |
295 |
160 |
390 |
300 |
350 |
260 |
245 |
250 |
784 |
316 |
100 |
180 |
220 |
180 |
GM a
GL a |
12.5 HV |
360 |
325 |
380 |
186 |
260 |
1118 |
360 |
180 |
440 |
336 |
400 |
296 |
210 |
250 |
785 |
333 |
100 |
180 |
220 |
230 |
GM a
GL a |
12.6 HV |
360 |
381 |
436 |
206 |
340 |
1289 |
360 |
180 |
500 |
396 |
460 |
356 |
290 |
250 |
917 |
372 |
150 |
240 |
285 |
295 |
GM a
GL a |
13.f7 HV |
400 |
375 |
423 |
206 |
330 |
1276 |
436 |
200 |
570 |
440 |
510 |
380 |
270 |
250 |
907 |
372 |
150 |
240 |
285 |
345 |
GM a
GL a |
13.8 HV |
400 |
445 |
493 |
234 |
470 |
1560 |
436 |
200 |
570 |
440 |
510 |
380 |
410 |
250 |
1075 |
488 |
150 |
240 |
285 |
485 |
GM a
GL a |
14.9 HV |
500 |
470 |
510 |
263 |
350 |
1606 |
538 |
250 |
652 |
484 |
600 |
432 |
290 |
260 |
1118 |
488 |
200* |
295 |
340 |
580 |
GM a
GL a |
15.10 HV |
630 |
468 |
545 |
281 |
360 |
1629 |
652 |
315 |
800 |
588 |
720 |
508 |
280 |
270 |
1151 |
486 |
200* |
295 |
340 |
770 |
GM a
GL a |
15.11 HV |
630 |
533 |
610 |
281 |
490 |
1813 |
652 |
315 |
800 |
588 |
720 |
508 |
410 |
270 |
1281 |
532 |
250* |
350 |
395 |
840 |
GM a
GL a |
16.f13 HV |
710 |
620 |
717 |
297 |
670 |
2036 |
810 |
355 |
910 |
640 |
830 |
560 |
525 |
290 |
1482 |
554 |
300* |
400 |
445 |
1350 |
GM a
GL a |
16.13 HV |
710 |
685 |
717 |
297 |
800 |
2204 |
810 |
355 |
910 |
640 |
830 |
560 |
655 |
290 |
1612 |
592 |
300* |
400 |
445 |
1400 |
GM a
GL a |
17.15 HV |
1000 |
782 |
825 |
297 |
855 |
2421 |
1005 |
500 |
930 |
920 |
810 |
810 |
725 |
290 |
1752 |
669 |
350* |
460 |
505 |
2300 |
|
| |
|
|
|
