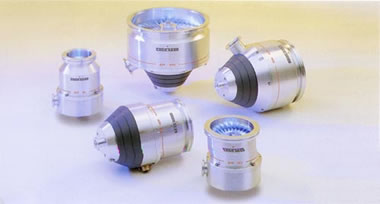

ATR "C" version: protected

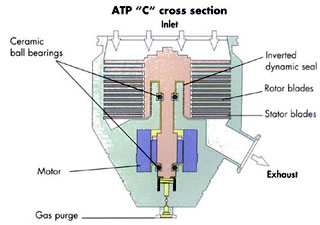

for corrosive gas pumping This new anti-corrosive protection is a built-in mechanical system based on the molecular drag pump principle. The inverted dynamic seal provides a high compression ratio between the bearings and the pump exhaust and minimises the amount of corrosive gases reaching the bearings. Protected against the corrosion effects: The ATP pumps of the "C" version are well adapted to corrosive gas pumping. The gas purge added to the inverted dynamic seal result in an enhanced protection against corrosion.
|
 |
|
Characteristics |
ATP 80C | ATP 100C | ATP 150C | ATP 400C | ATP 900C | ||||
| Inlet flange |
DN63 ISO-K DN63 CF-F |
DN100 ISO-K DN100 CF-F |
DN100 ISO-K DN100 CF-F |
DN160 ISO-K DN160 CF-F |

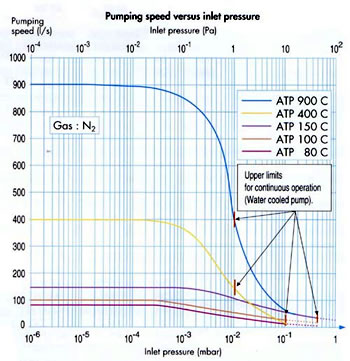

DN200 ISO-K DN200 CF-F | ||||
| N2 | l/s | 80 | 100 | 140 | 400 | 900 | |||
| Pumping speed | He | l/s | 50 | 60 | 100 | 300 | 540 | ||
| H2 | l/s | 40 | 40 | 80 | 250 | 300 | |||
| N2 | 8 × 107 | 8 × 107 | 7 × 108 | 7 × 108 | 1 × 109 | ||||
| Compression ratio | He | 2500 | 2500 | 1.2 × 104 | 1.5 × 104 | 2 × 104 | |||
| H2 | 300 | 300 | 1 × 103 | 1 × 103 | 2 × 103 | ||||
| Ultimate pressure without pruge(1)(2) | mbar | 5 × 10-9 | 5 × 10-9 | 5 × 10-10 | 5 × 10-10 | 5 × 10-10 | |||
| Ultimate pressure without pruge(2) | mbar | 5 × 10-8 | 5 × 10-8 | 1 × 10-7 | 1 × 10-7 | 1 × 10-7 | |||
| Purging nitrogen flow rate | sccm | 50 | |||||||
| Maximum continuous inlet presure(2) | mbar | 1 × 10-1 | 1 × 10-1 | 5 × 10-1 | 2 × 10-2 | 1 × 10-2 | |||
| Maximum exhaust pressure (2) |
mbar |
2 × 10-1 | 3 × 10-1 | 4 × 10-1 | 2 × 10-1 | 3 × 10-1 | |||
| Minimum recommeded for pump | Pascal 2005 CP | Pascal 2005 CP | Pascal 2021 CP | Pascal 2033 CP | Pascal 2063 CP | ||||
| Mounting orientation | Any | ||||||||
| Rotational speed |
rpm |
27 000 | |||||||
| Start-up time |
min |
1min 45s | 1 min 45s | 2 min | 3 min | 3 min | |||
| Maximum ambient temperature | ℃ | 40 | 40 | 40 | 40 | 50 (pump) | |||
| Maximum bake out temperature on flange | ℃ | 120 | 120 | 120 | 100 | 100 | |||
| Exhaust flange | ISO-KF | DN 25 | DN 25 | DN 25 | DN 40 | DN 40 | |||
| N2 purge flange | ISO-KF | DN 16 | |||||||
| Weight | air cooled | kg(lb) | ISO-K | 4 (8.8) 5.3 (11.7) |
4 (8.8) 5.3 (11.7) |
6.5 (14.3) | 9.1 (20) | 17.7 (39) | |
| CF-F | |||||||||
| Weight | water cooled | kg(lb) | ISO-K | 3.4 (7.5) 4.4 (9.7) |
3.4 (7.7) 4.4 (10.3) |
6.5 (14.3) | 9.2 (20.2) | 17.2 (37.9) | |
| CF-F | |||||||||
| Controller | ACT 200T CFV100 OEM |
ACT 200T CFV100 OEM |
ACT 600T ACT 250 |
ACT 600T ACT 250 |
ACT 1000T | ||||
| Controller weight |
kg(lb) |
mkj | 2.6 (5.7) | 4 (8.8) | 4 (8.8) | 8.5 (18.7) | |||
| Controller size | 1/4 Rack | 1/4 Rack | 1/2 Rack | 1/2 Rack | 1/2 Rack | ||||
| Power supply | 100 to 240 V-50/60 Hz-Single phase | ||||||||
| Maximum power consumption | VA | 100 | 100 | 300 | 300 | 800 | |||
(2)Water cooled model with CF-F inlet flange
|
ATP "C" applications Corrosive gas processes in: ．Industry |
 |
|
